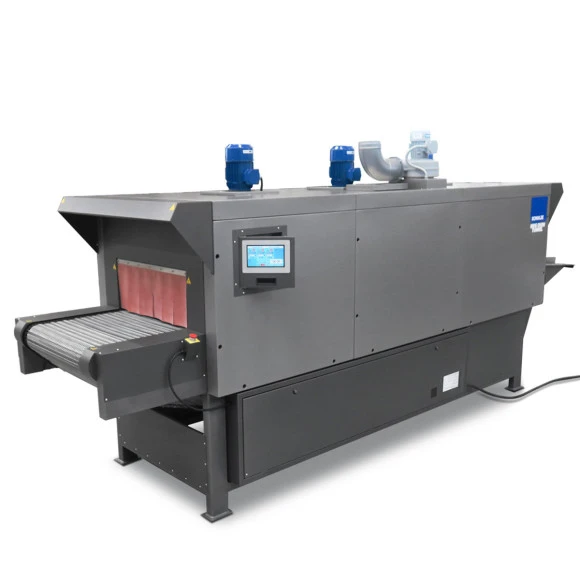

SCHULZE Mug Oven Tunnel KN 65300U

The SCHULZE Mug Oven Tunnel KN65300U is a high-performance sublimation tunnel oven designed for industrial mug and container production. With its long heating zone, powerful conveyor system and high throughput, it is the ideal solution for large-scale, continuous sublimation workflows.

Key Features:

  • Length of heating zone 300 cm
  • Width of conveyor belt 65 cm
  • Power 26.4 kW / 400 VAC three-phase current
  • Power can be reduced to 18 kW at lower speeds
  • 2 extractor hoods with connection to ventilation system
  • Sturdy construction with wheels
  • Maximum output approx. 500 cups per hour
  • Time setting between 7 and 25 minutes possible

SUBLIMATION EQUIPMENT

High-Volume Production
The KN65300U Mug Oven Tunnel is built for maximum productivity, allowing up to 500 mugs per hour depending on speed and application. Its continuous conveyor system makes it ideal for large production runs and industrial environments where efficiency and consistency are essential.

Consistent Results
With a 300 cm heating zone and precise temperature control, the tunnel oven ensures even heat exposure across the entire product surface. This results in uniform, high-quality sublimation—especially important for full-wrap designs and demanding substrates.

Flexible Power Management
Designed for professional use, the oven features a robust construction with integrated wheels for easier positioning. Power output can be reduced from 26.4 kW to 18 kW at lower speeds, allowing energy-efficient operation while maintaining reliable performance.

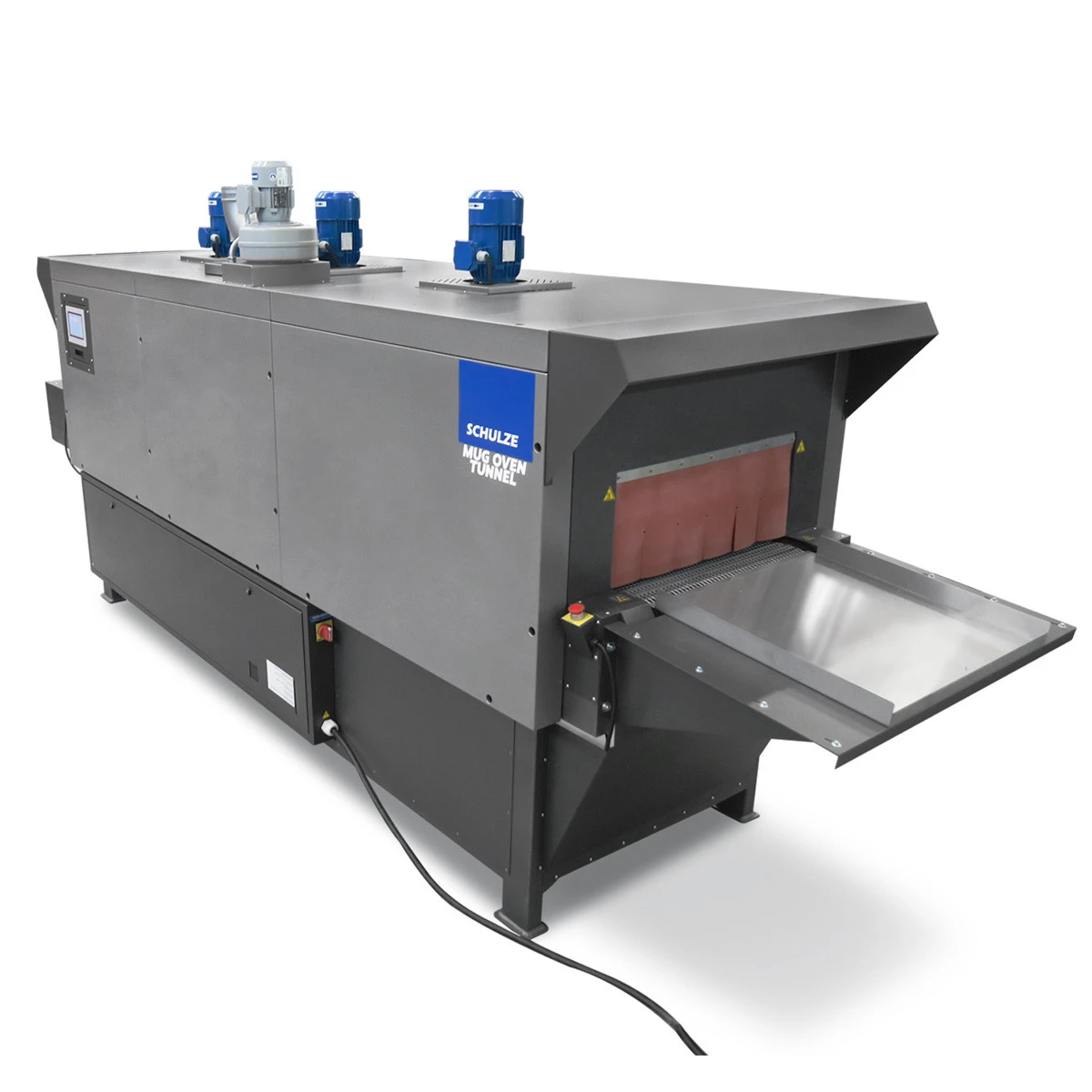

SCHULZE Mug Oven Tunnel KN65300U – Full Speed Industrial Sublimation
The SCHULZE Mug Oven Tunnel KN65300U is a powerful industrial sublimation solution for mugs and a wide variety of vessels. Designed for continuous operation, it delivers maximum efficiency, process stability and consistent print quality in high-volume production environments.

Advanced Touch Display Control
The tunnel oven features a modern touch display interface that enables precise and user-friendly control of all operating parameters. Temperature settings from 0 to 250 °C and adjustable conveyor speeds between 7 and 25 minutes allow exact tuning for different sublimation applications and materials.

Three Heating Zones for Uniform Results
Inside the tunnel, three independent heating zones ensure even heat distribution throughout the entire heating process. Each zone is equipped with four heating elements, creating stable thermal conditions that are essential for high-quality, full-wrap sublimation results.

Integrated Ventilation System

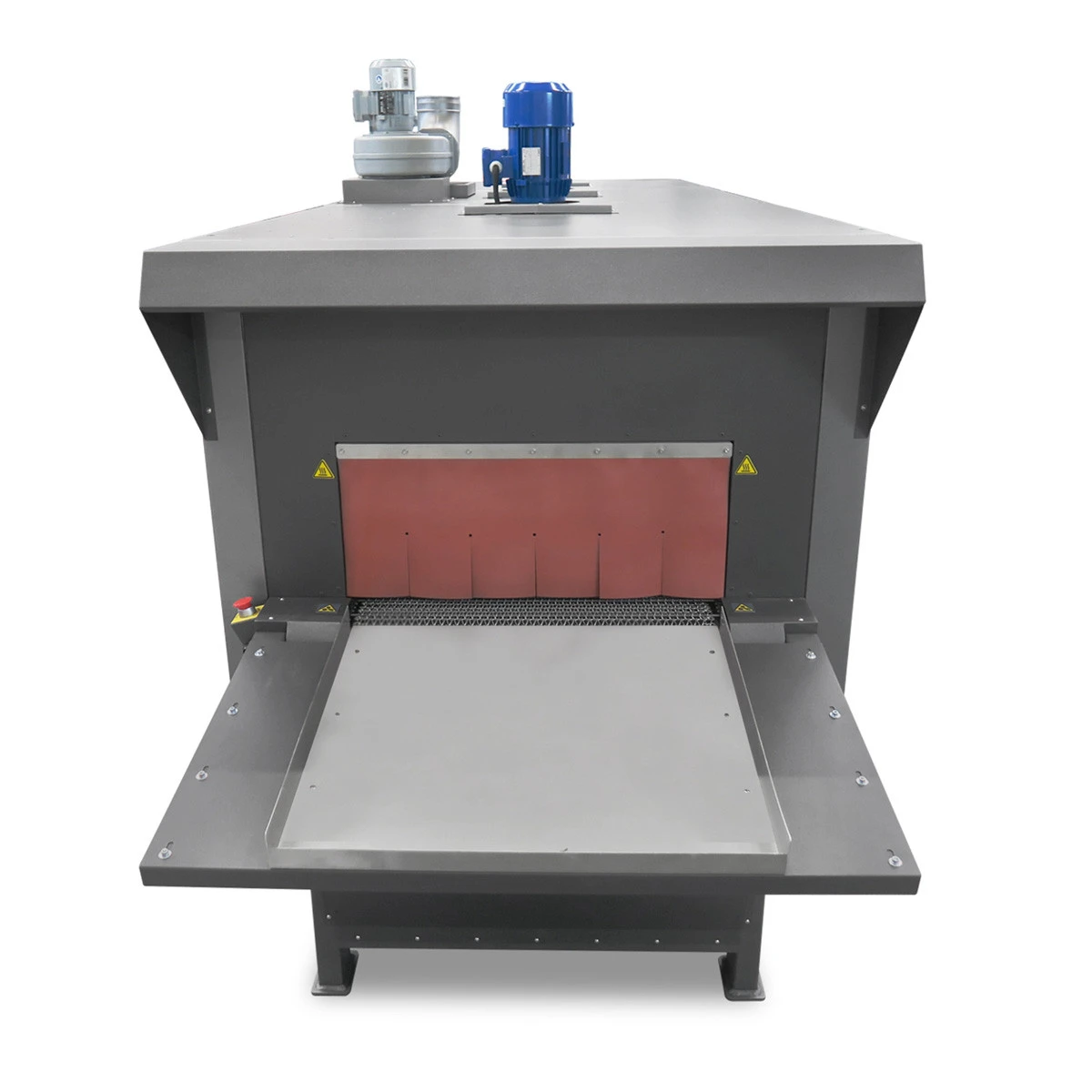

To ensure safe operation, the KN65300U is fitted with two extraction hoods connected to a ventilation system. These prevent sublimation fumes from escaping during operation, improving air quality and making the tunnel oven suitable for professional production facilities.

High Capacity for Continuous Production
With a maximum output of up to 650 mugs per hour, the KN65300U is ideal for industrial-scale production. The system is designed to handle mugs and vessels up to a maximum height of 25 cm, making it compatible with a wide range of products.

Compatible with Silicone Sleeves
For flexible application options, silicone sleeves for various vessel types are available separately. Suitable options can be found under Simple Sleeves in our webshop, allowing reliable sublimation of mugs, bottles and other containers.

Technical Data

Dimensions 420 × 126 × 174 cm
Weight (incl. packaging) 800 kg

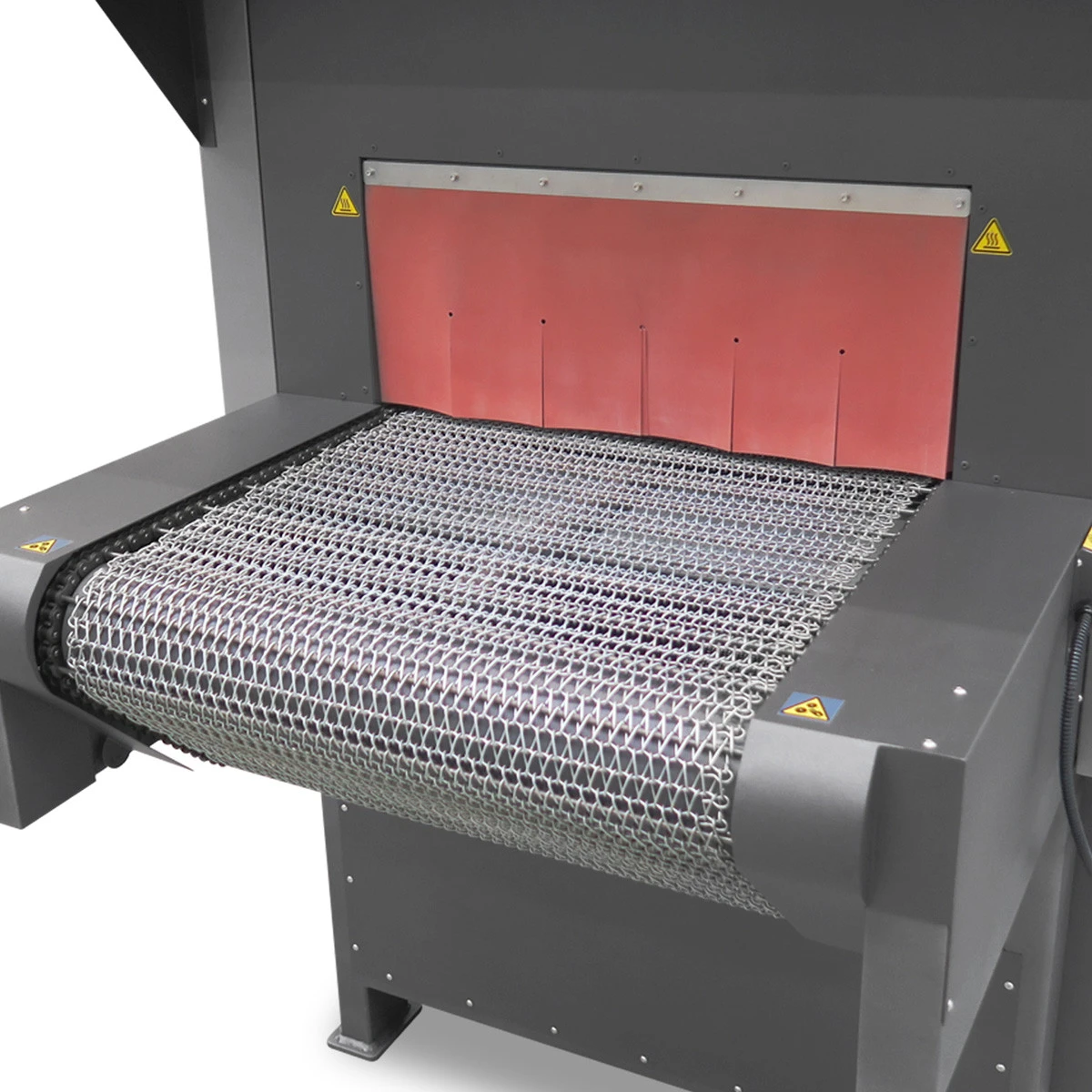

Conveyor belt width 65 cm
Heating zone width 65 cm
Heating zone length 300 cm
Infeed length 50 cm
Operating voltage 400 VAC / 50–60 Hz
Max. hot air temperature 220 °C
Max. heating power 26.4 kW
Total connected load 29 kW
Main fuse B 50 A
Power connector 63A 5P 400V
Max. object height 25 cm
