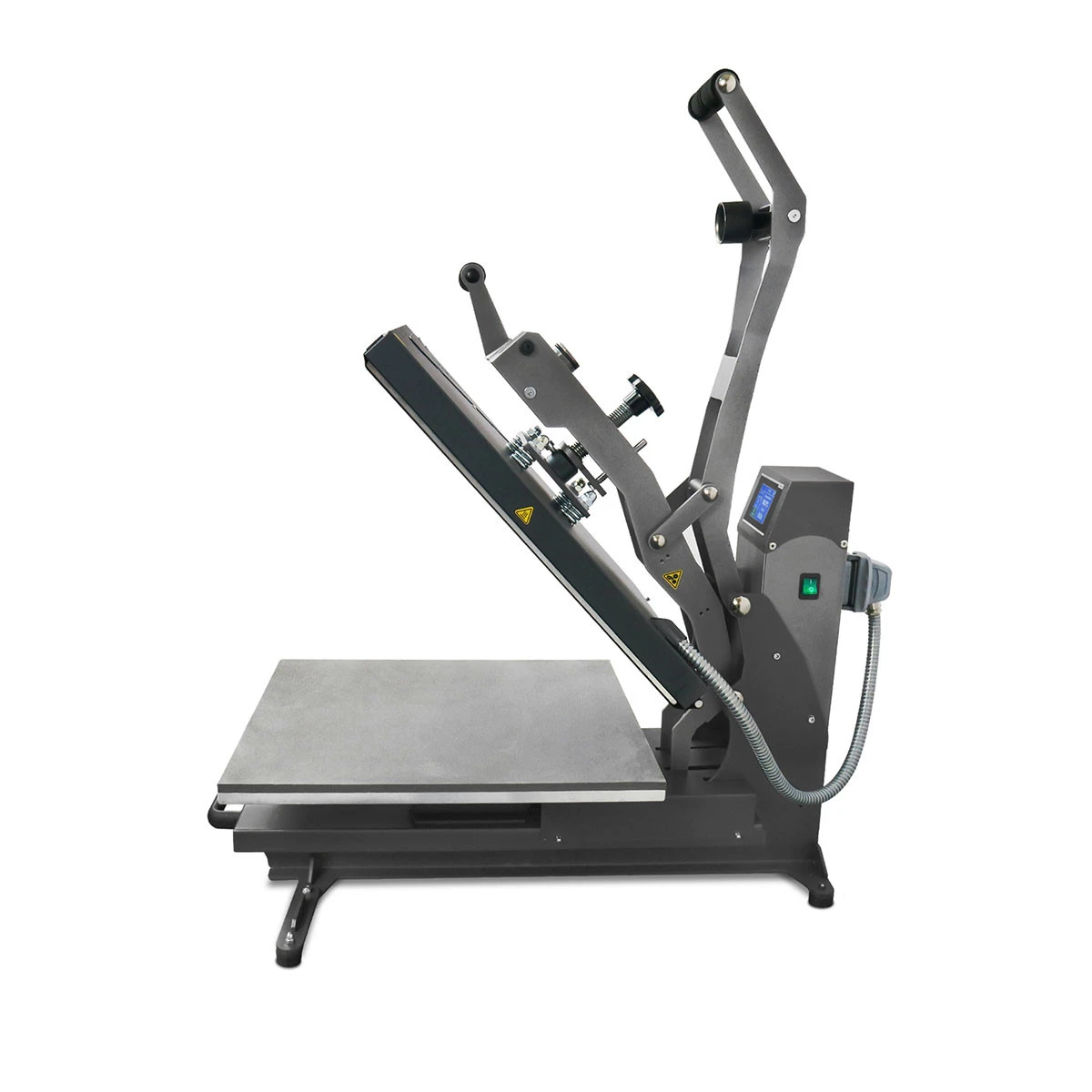

SCHULZE Clam Press Slide
The SCHULZE Clam Press Slide is a modern manual self-opening heat press designed for professional textile finishing. Combining high precision with efficiency, it is ideal for textile printers who demand consistent quality and reliable performance.
Key Features:
- Manual self-opening clam/iron press
- Base plate with slider mechanism for easy positioning
- Quick Release system for fast plate changes
- Modern touch display with temperature, time, pre-press, Eco mode, piece counter, and self-diagnosis functions
- Turbo heating platen with 3300 W power
- Automatic opening after the preset press time
- Interchangeable base and heating plates
MANUAL HEAT PRESS
Manual self-opening operation
The Clam Press Slide is a manual self-opening heat press designed for professional textile printing. Its intuitive design allows operators to easily manage each pressing cycle while maintaining full control over temperature, timing, and pressure, ensuring precise and consistent results every time.
Slider base plate
The press features a slider mechanism on the base plate, which automatically extends after the press opens, allowing textiles to be easily positioned and aligned. This ensures accurate placement for every print, whether you’re working with T-shirts, bags, or other materials.
Quick Release system
With the Quick Release system and high-powered 3300 W Turbo heating platen, the Clam Press Slide provides fast setup, consistent heat distribution, and high-quality results. Interchangeable base and heating plates further increase versatility for a wide range of applications.
SCHULZE Clam Press Slide – Compact Precision for Professional Transfers
The SCHULZE Clam Press Slide 40 × 50 cm combines modern technology with ease of use in a compact heat press. Its powerful 3300 W Turbo heating platen reaches the desired temperature in record time, making rapid series production effortless and highly efficient.

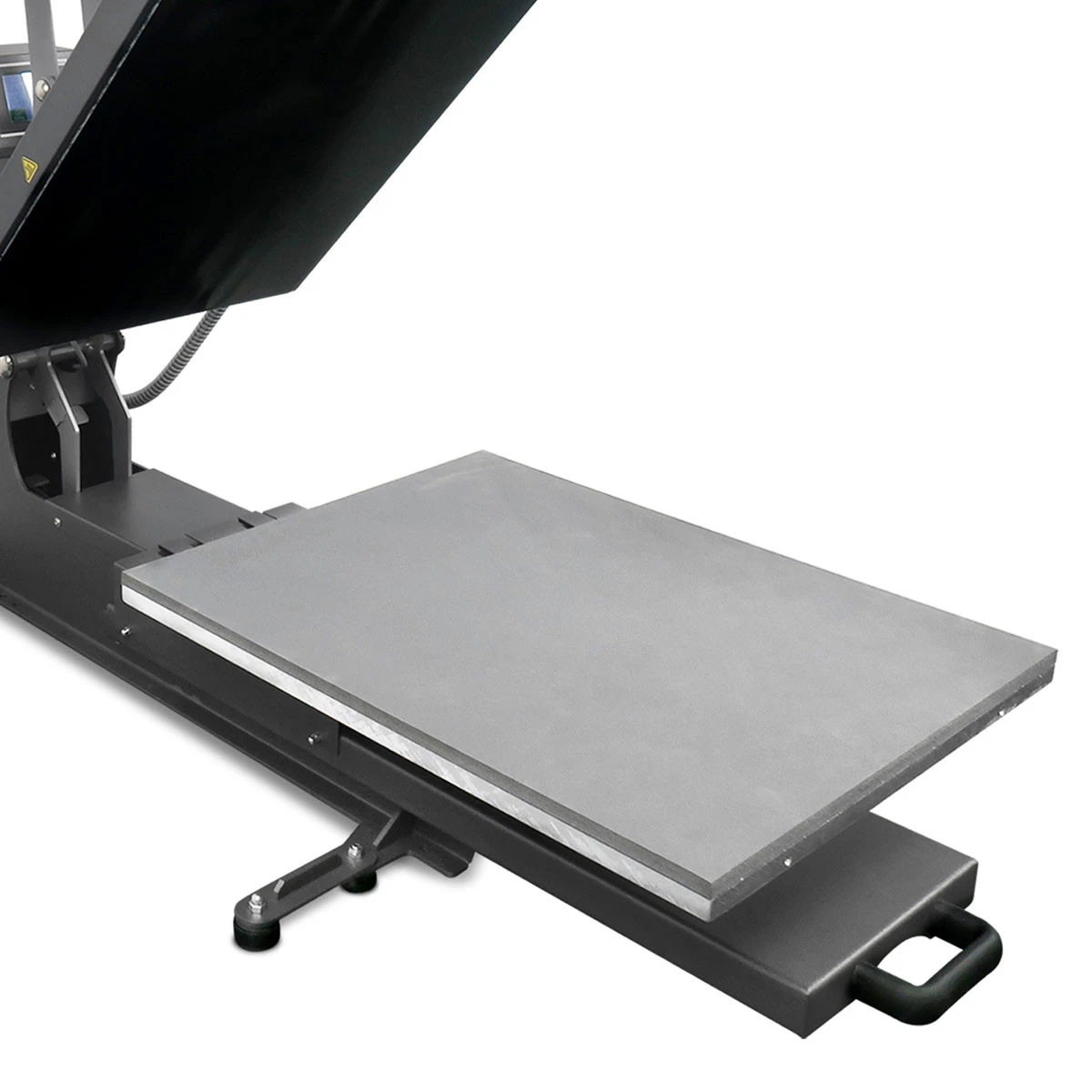

Automatic opening with slider base plate
After the press cycle is complete, the press opens automatically and the base plate slides forward on the built-in slider. This allows you to safely remove your textiles and transfers without coming into contact with the hot platen. The slider can also be locked in place if needed for added convenience and safety.
Quick Release system
The Clam Press Slide features the proven Quick Release system, enabling fast installation or replacement of base plates. Simply lift the lever beneath the base plate to swap it out. Existing base plates can also be upgraded with a Quick Release adapter, which screws into the central thread of the plate.
Turbo heating platen
The 3300 W heating platen with two heating zones ensures even heat distribution across the 40 × 50 cm surface. Its extremely fast heat-up time makes it perfect for daily professional use.
Slider mechanism for safety and efficiency
The built-in slider mechanism moves the base plate forward once the pressing cycle is complete, keeping you protected from the hot platen and allowing comfortable removal of your materials.

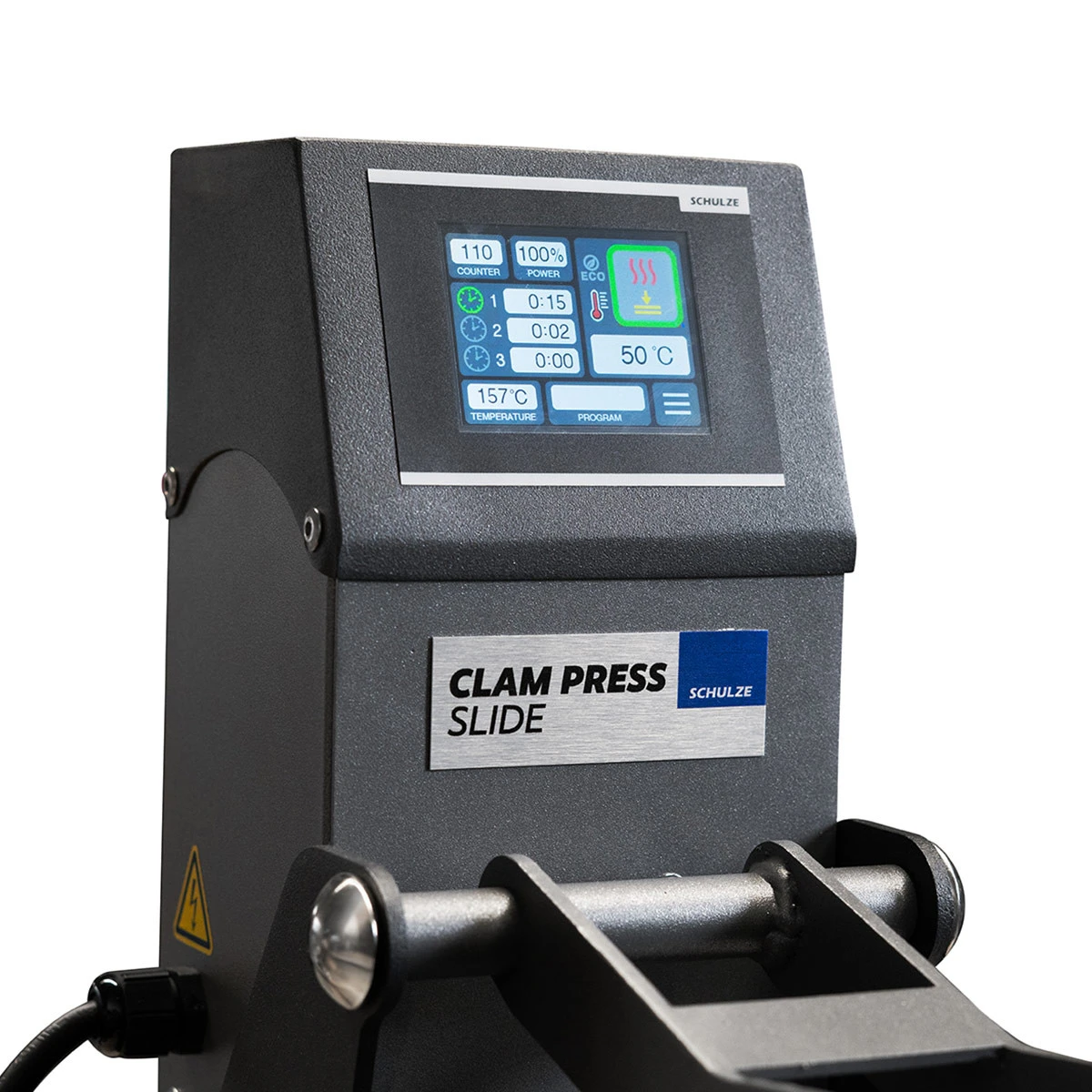

Touch display and professional features
The modern touch display allows convenient control of temperature, time, pre-press, Eco mode, transfer counter, and the self-diagnosis system, making the Clam Press Slide highly versatile and easy to operate.
Technical Data
| Platen size | 40 x 50 cm |
| Dimensions | 95 × 80 × 109 cm |
| Weight (incl. packaging) | 59 kg |
| Power supply / voltage | 16 A / 230 V |
| Time Range (min:sec) | 00:01 – 99:59 |
| Maximum substrate height | 2 cm |
| Heating power | 3.3 kW |
