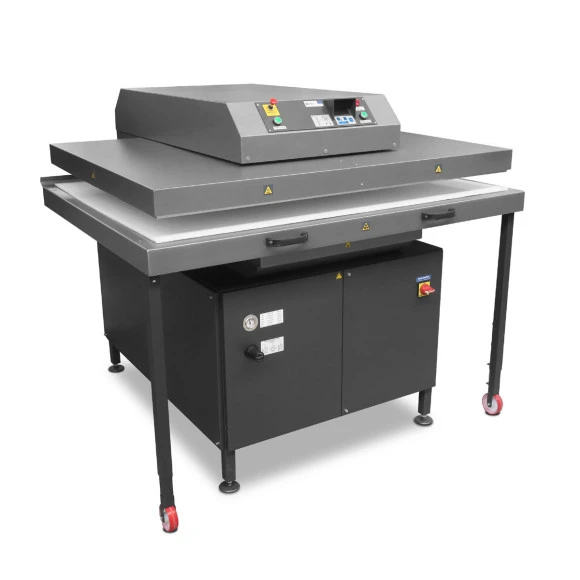

SCHULZE Big Press

The SCHULZE Big Press is a pneumatic large-format heat press designed for professional sublimation and textile printing. Available in four different sizes, it provides high-quality, consistent results for a wide range of large-format applications.

Key Features:

  • Pneumatic large-format heat press
  • Available in 4 different sizes: 58 x 80 cm, 70 x 100 cm, 90 x 130 cm, 112 x 150 cm
  • Extendable drawers Base plate
  • Base plate is pressed against the heating plate pneumatically
  • Heating time and temperature can be conveniently set via the display
  • The heat press requires a 3 x 400 V high-voltage connection and a compressor for operation

PNEUMATIC HEAT PRESS

Pneumatic base plate
Unlike conventional presses where the heating platen moves down, the Big Press features a pneumatically raised base plate, pressing the substrate evenly against the stationary heating platen. This ensures precise, uniform pressure across even the largest textiles.

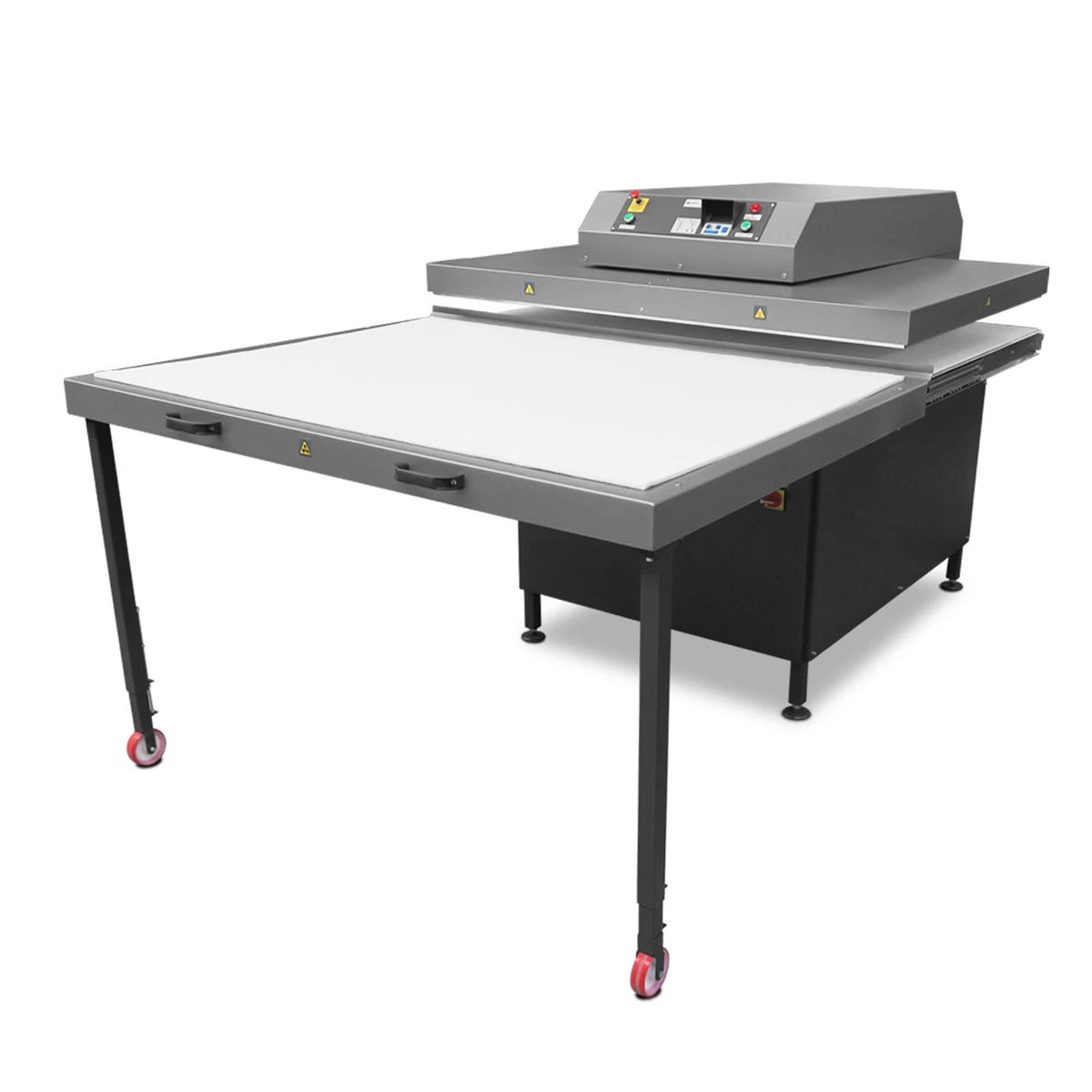

Extendable drawer-style base
The pull-out drawer base plate allows operators to safely place and align textiles before pressing. This design increases efficiency and minimizes the risk of errors, even for large-format items like banners, rugs, or curtains.

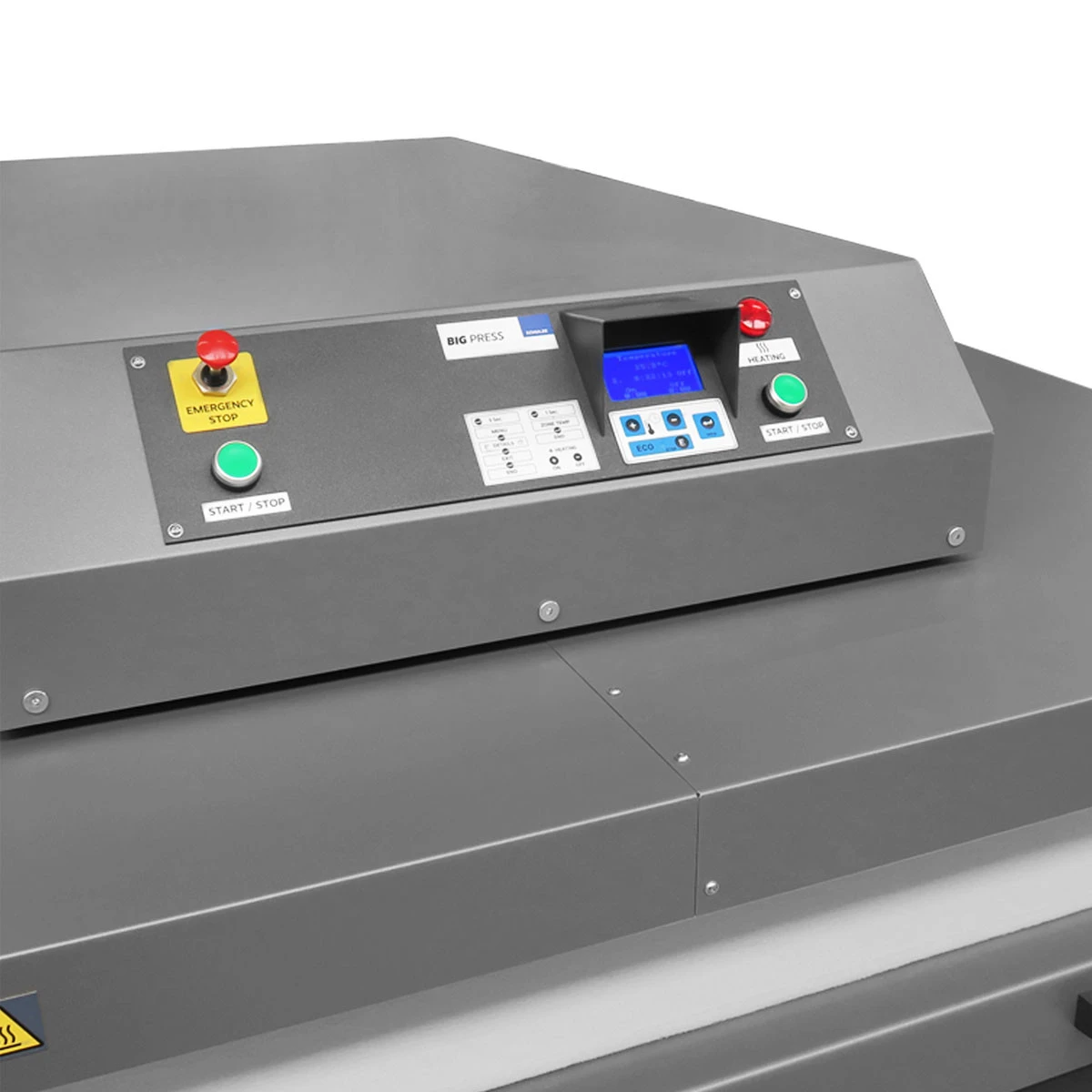

Full control
The Big Press is operated via a clear display with buttons, allowing easy adjustment of heating time, temperature, and press cycles. This ensures consistent results while keeping operation straightforward and reliable for industrial use.

SCHULZE Big Press – Reliable Large‑Format Heat Press
The SCHULZE Big Press is a pneumatic large‑format heat press engineered for demanding sublimation and textile transfer applications where size, consistency, and productivity matter. Available in four generous sizes — 58 × 80 cm, 70 × 100 cm, 90 × 130 cm, and 112 × 150 cm — it provides professional-grade performance for even the most oversized substrates.

Its powerful heating system reaches operating temperature quickly, thanks to a high-capacity heating platen, allowing the machine to be fully heated in approximately 30 minutes and ready for production.

Large-Format Applications
With its expansive platen sizes, the Big Press excels at large textile transfers. It is ideal for printing on oversized mouse pads, towels, floor mats, blankets, curtains, and other broad substrates that would challenge smaller presses. The pneumatic design ensures consistent pressure across the entire surface, even when working with bulky or uneven materials.

Durable, Professional-Grade Design
Built to excel in high-volume environments, the Big Press supports repeatable, reliable performance day after day. The extendable drawer-style base plate allows textiles to be loaded and aligned safely, while the pneumatic system delivers even, precise pressure for perfect results.

Note: A compressor and a three-phase power supply (3 × 400 V) are required for operation.

Technical Data

Platen size 58 x 100 cm 70 x 100 cm 90 x 130 cm 112 x 150 cm
Dimensions 92 × 110 × 136 cm 112 × 116 × 136 cm 135 × 142 × 136 cm 168 × 158 × 142 cm
Weight (incl. packaging) approx. 420 kg approx. 470 kg approx. 710 kg approx. 865 kg
Power Supply 3 × 400 V three-phase 3 × 400 V three-phase 3 × 400 V three-phase 3 × 400 V three-phase
Heating Capacity 5 kW 6.5 kW 9 kW 11 kW
Preheating Time approx. 30 min to 180 °C approx. 30 min to 180 °C approx. 30 min to 180 °C approx. 30 min to 180 °C
Max. Pressure 2.490 kg 2.490 kg 5.040 kg 5.040 kg
Pneumatic Pressure 0.36 kg/cm² 0.36 kg/cm² 0.72 kg/cm² 0.72 kg/cm²
Air Consumption per Cycle 34 L 34 L 68 L 68 L
Transport Width 84 cm 106 cm 140 cm 155 cm
