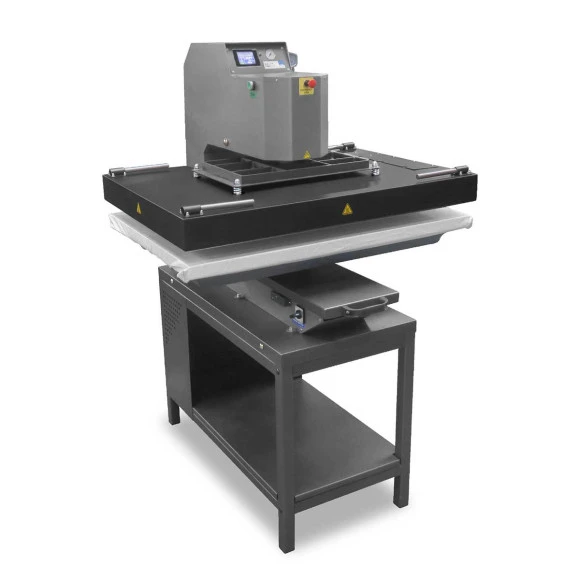

SCHULZE Big Lite Pneu Press

The SCHULZE Big Lite Pneu Press is the world’s first pneumatic large-format transfer press from Schulze with interchangeable heating and base plates. Designed for professional textile finishing, it is lightweight, intuitive, and easy to operate via a modern touch display. The press runs on a standard 220 V household outlet and requires only a single air compressor for operation, making it convenient and efficient for any workspace.

Key Features:

  • Pneumatic large-format transfer press
  • Compact 70 × 100 cm design for big projects
  • Operates on standard 230 V household power
  • Pull-out base plate for easy textile placement
  • Interchangeable heating and base plates
  • Stepless adjustable pressure for precise results
  • Fast heat-up with 3.4 kW Turbo heating platen
  • Energy-efficient and low-noise operation
  • Perfect for sublimation applications

PNEUMATIC HEAT PRESS

Pneumatic large-format
The SCHULZE Big Lite Pneu Press is a pneumatic large-format transfer press designed for professional textile printing. Its intuitive operation via touch display makes it easy to handle even large substrates, while maintaining precise control over every press cycle.

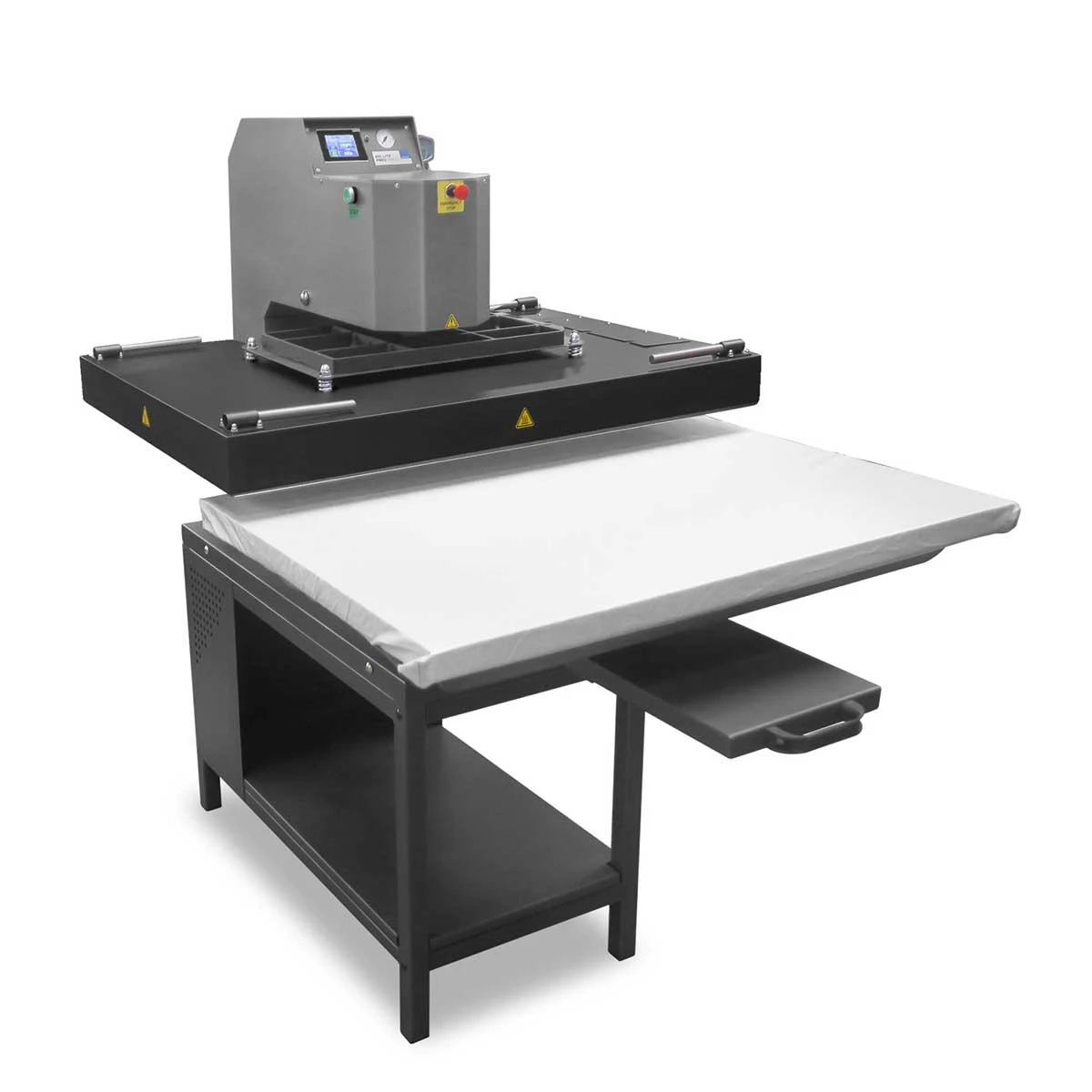

Pull-out base plate
Equipped with a pull-out base plate, the press allows textiles to be placed and aligned safely before pressing. This ensures accurate placement and reduces the risk of errors, whether you are working with large T-shirts, mats, or other big-format items.

Turbo heating
With a turbo heating platen and interchangeable base and heating plates, the Big Lite Pneu Press provides fast heat-up times, consistent heat distribution, and reliable high-quality results. The adjustable pressure and protective covers add convenience and safety for daily professional use.

SCHULZE Big Lite Pneu Press – Large-Format Precision
The SCHULZE Big Lite Pneu Press 70 × 100 cm is the perfect pneumatic heat press for large surfaces, offering professional-quality results without the need for a special power supply—standard 230 V household voltage is sufficient.

Interchangeable base and heating plates
Thanks to the option to swap base and heating plates, the Big Lite Pneu Press can be upgraded with plates of different sizes, providing maximum flexibility for a wide range of projects.

Compact, modular design
The modular construction ensures that the press fits through any standard door and requires no special structural modifications. A practical under-table is included for convenient and safe operation.

Ideal for sublimation applications
Equipped with a soft foam mat on the base plate, the press is perfect for sublimation transfers. It can be used on large textiles such as towels, floor mats, carpets, or curtains.

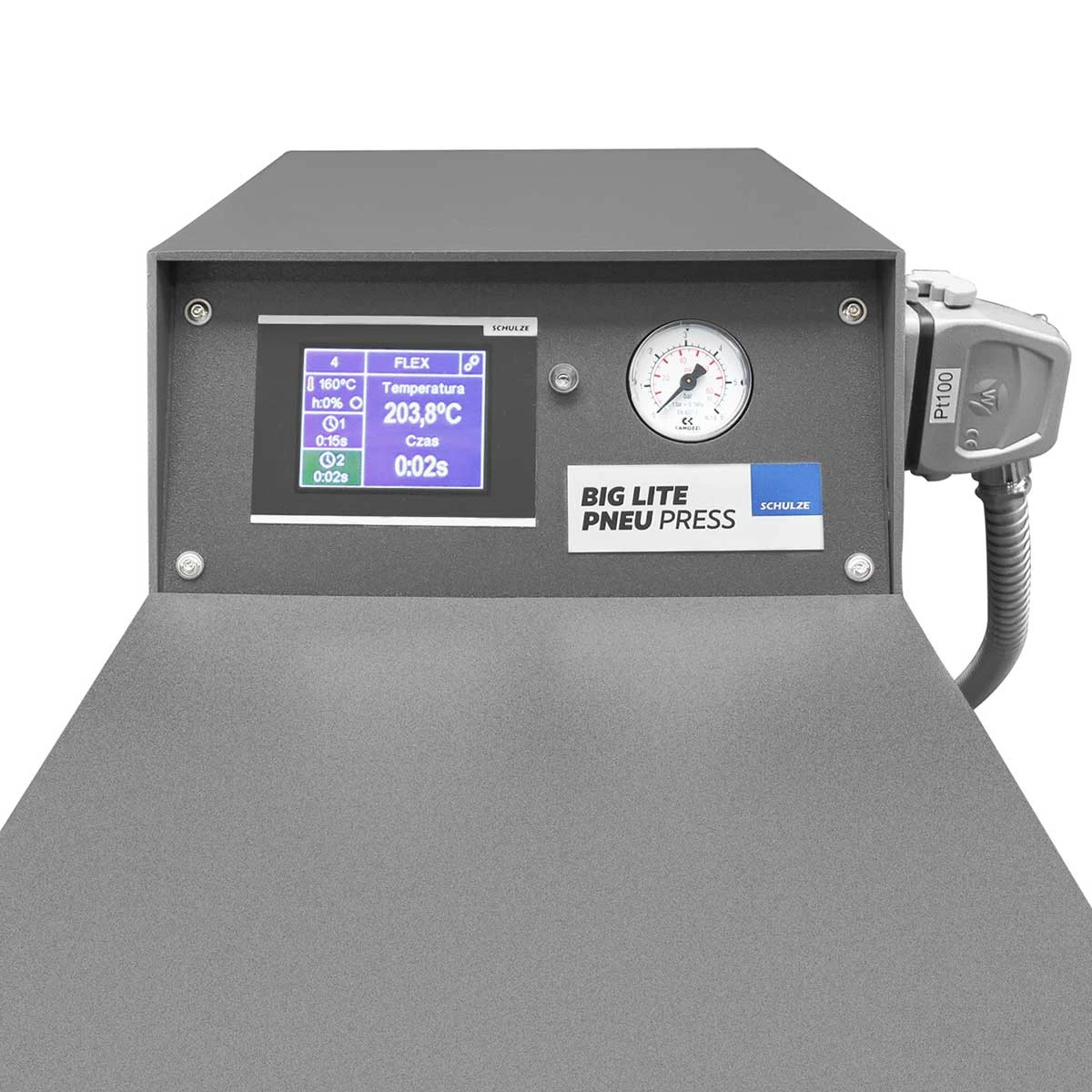

Intuitive touch display
The modern touch display allows easy control of temperature, time, transfer type, multiple preset press programs, and pre- and main press settings.

Energy-saving features
The integrated Eco mode helps reduce energy consumption, lowering both environmental impact and operational costs. After 30 minutes of inactivity, the platen temperature drops by 50 °C below the set temperature, and after an additional 30 minutes, the press switches off completely.

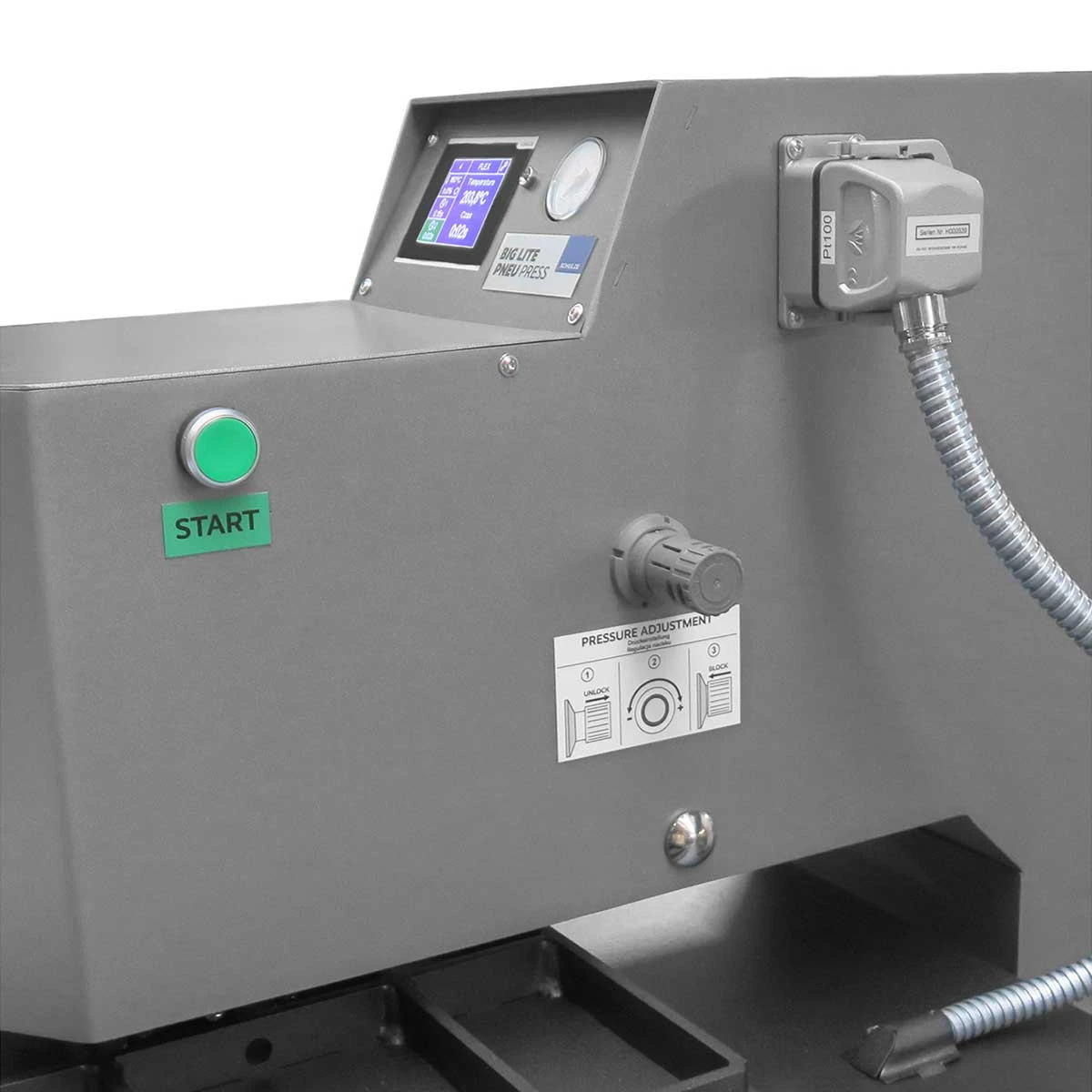

Stepless adjustable pressure
The Big Lite Pneu Press features stepless adjustable pressure, ensuring even pressure distribution across the substrate for consistent, high-quality results.

Note: Operation requires a compressed air supply.

Technical Data

Platen size 70 x 100 cm
Dimensions 110 × 102 × 157 cm
Overall dimensions with extended drawer 180 × 102 × 157 cm
Weight (incl. packaging) approx. 245 kg
Power supply / voltage 10.5 A / 230 V
Maximum temperature 220 °C
Heating power 3.4 kW
Preheat time approx. 30 min to 180 °C
Time setting 1 sec – 99 min 59 sec
Maximum pressure 1800 kg
Air requirement per cycle 4.6 l
