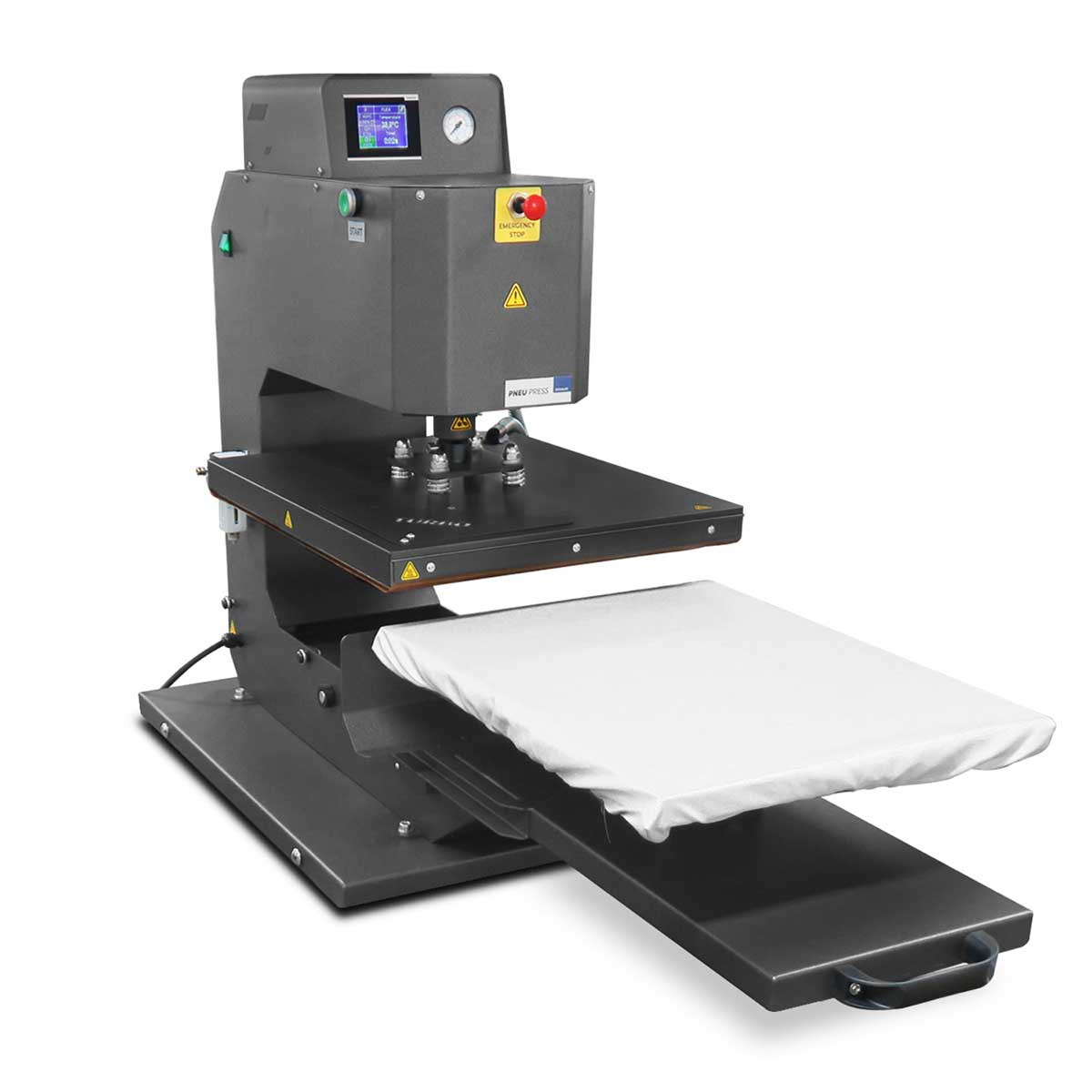

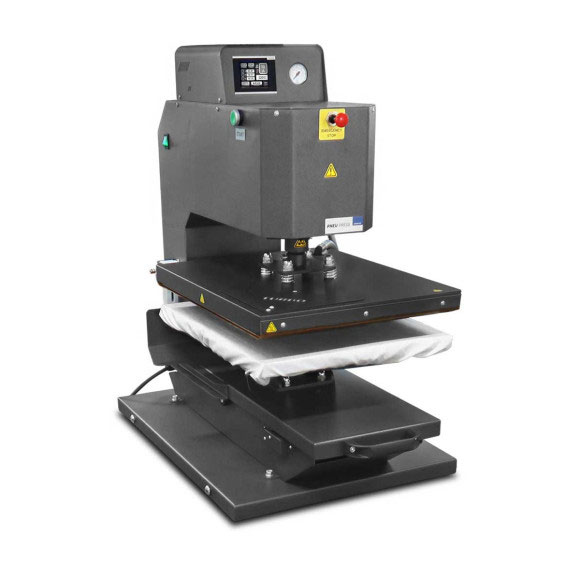

SCHULZE Pneu Press

The SCHULZE Pneu Press is a pneumatic transfer press, featuring an innovative slider system. The removable base plate allows for perfect textile placement every time.

Key Features:

  • Pneumatic transfer press
  • Interchangeable base plates (Quick Release system)
  • Turbo heating platen with up to 3300 W power
  • Automatic opening and closing
  • Modern touch display
  • Adjustable time, temperature, and transfer memory settings
  • Pre-press function with stepless pressure adjustment
  • Energy-efficient and quiet operation
  • 12-year warranty on the heating platen element

PNEUMATIC HEAT PRESS

Compressor-powered precision
This press uses pneumatic pressure to deliver consistent and professional-quality results every time. Its smooth electric components work in harmony with the compressor, providing reliable pressing force while keeping operation stable and controlled.

Easy textile positioning
Thanks to the extractable slider base plate, textiles of all shapes and sizes can be positioned with ease and precision. No obstructive heating plates or arms interfere, allowing fast setup and perfect alignment for every item.

Versatile & adaptable
With interchangeable heating and base plates, the Pneu Press handles T-shirts, sweatshirts, caps, bags, umbrellas, and more—offering flexibility to adapt quickly to different materials while maintaining high-quality results.

SCHULZE Pneu Press – Pneumatic Transfer Press
The SCHULZE Pneu Press is a high-performance pneumatic transfer press with a removable, sliding base plate, allowing textiles to be perfectly positioned before pressing. You can set any press time at the push of a button, eliminating the need for tedious manual pre-pressing. With its stepless adjustable pressure and modern touch display, working becomes efficient, precise, and enjoyable. Its compact design also makes this heat press ideal for tight workspaces.

Versatile substrate options with interchangeable plates
Thanks to interchangeable heating and base plates, the Pneu Press can be used for a wide variety of substrates.

Innovative slider system for easy textile placement
The special slider mechanism of the base plate allows textiles of all types to be positioned easily. No obstructive heating plates or arms get in the way during setup, making your workflow smoother and more efficient.

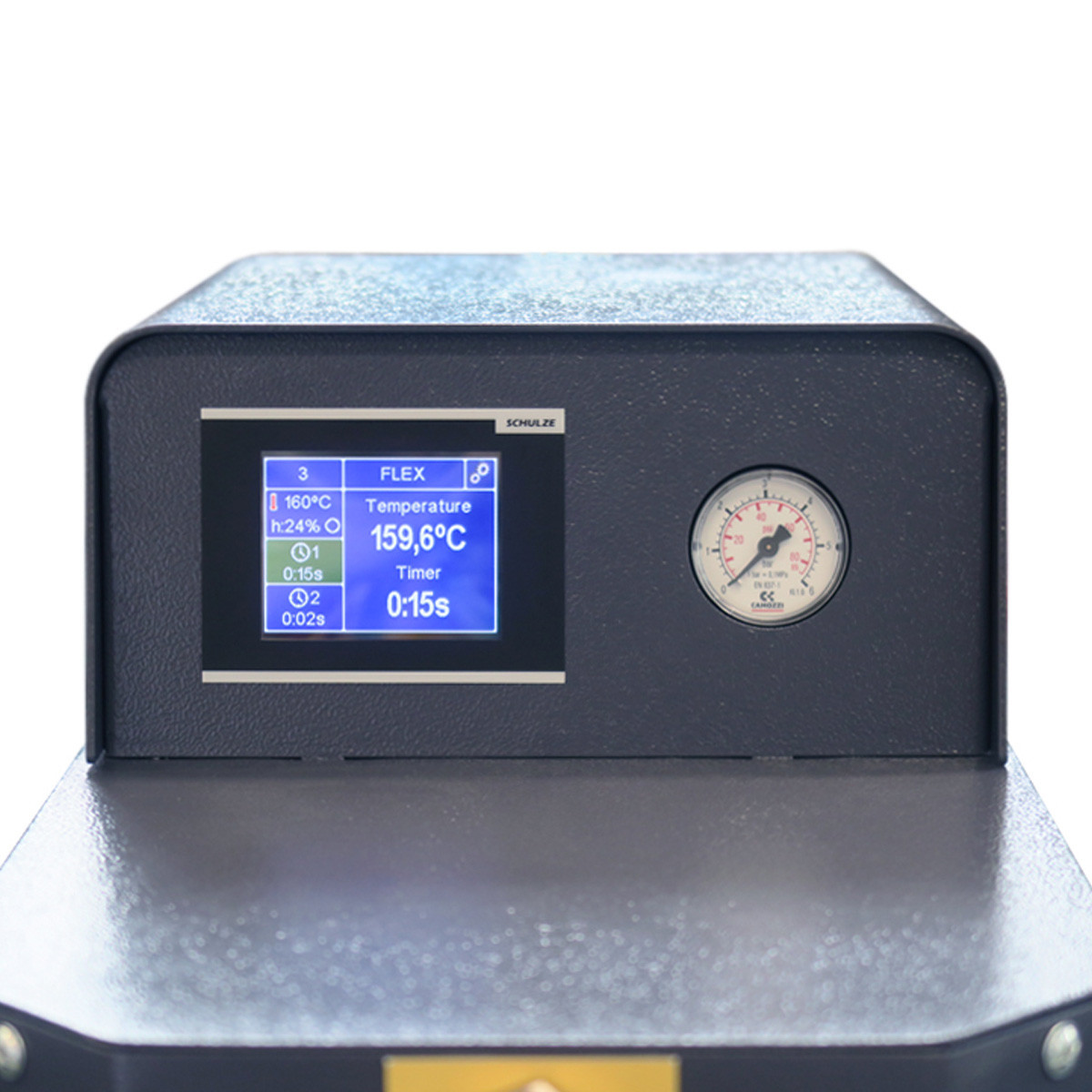

Intuitive touch display for comfortable operation
All settings – including temperature, time, and pre- and main press durations – can be conveniently controlled via the user-friendly touch display.

Stepless adjustable pressure
The Pneu Press features stepless adjustable pressure, ensuring even pressure distribution across the material for consistent print quality.

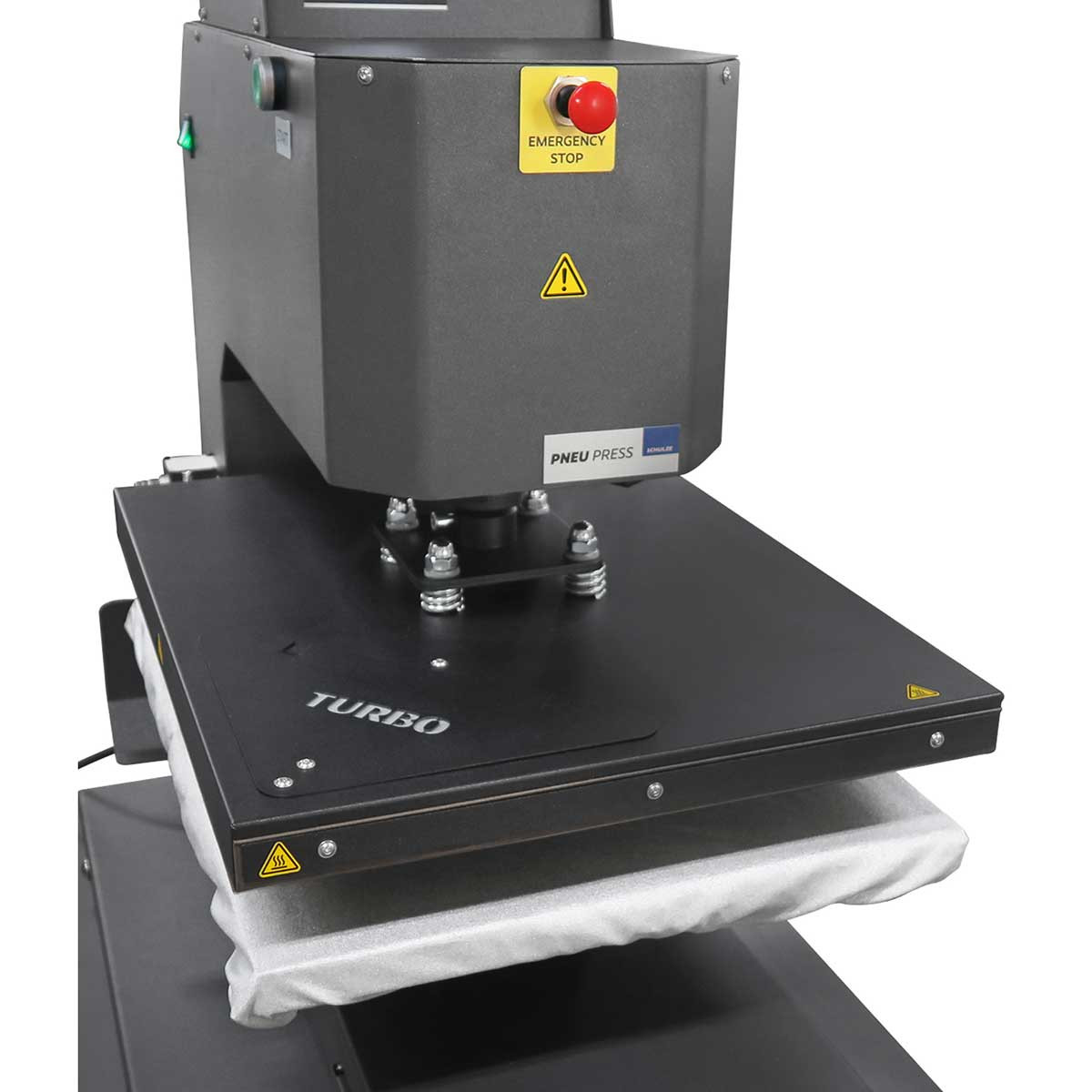

Turbo heating platen
Our turbo heating platen provides uniform heat distribution across up to two heating zones (40 x 50 cm model). With a high output of up to 3300 W, it achieves very short heat-up times.

Quick Release / Easy base plate exchange
Simply operate the lever under the base plate to swap it in seconds. Older base plates can also be upgraded with the Quick Release adapter, which screws into the existing central thread.

Note: A compressor is required for operation.

Technical Data

Dimensions 85 x 50 x 82 cm
Weight (incl. packaging) ca. 105 kg
Supply voltage 10,5 A/230 V
Power 3.3 kW
Time Range (min:sec) 00:01 – 99:59
Max. Pressure 6 bar
